DG469EQ-T1-E3
Manufacturer: Vishay / Siliconix
Description: IC SWITCH SNGL SPDT 8MSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:3182
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DG469EQ-T1-E3 Vishay / Siliconix at chimicron.com. We have 3182 pieces of DG469EQ-T1-E3 in stock available now. Submit an inquiry for DG469EQ-T1-E3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits1
On-State Resistance (Max)6Ohm
Channel-to-Channel Matching (ΔRon)120mOhm
Voltage - Supply, Single (V+)12V
Voltage - Supply, Dual (V±)±4.5V ~ 15V
Switch Time (Ton, Toff) (Max)166ns, 108ns
-3db Bandwidth-
Charge Injection58pC
Channel Capacitance (CS(off), CD(off))37pF, 85pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-63dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount

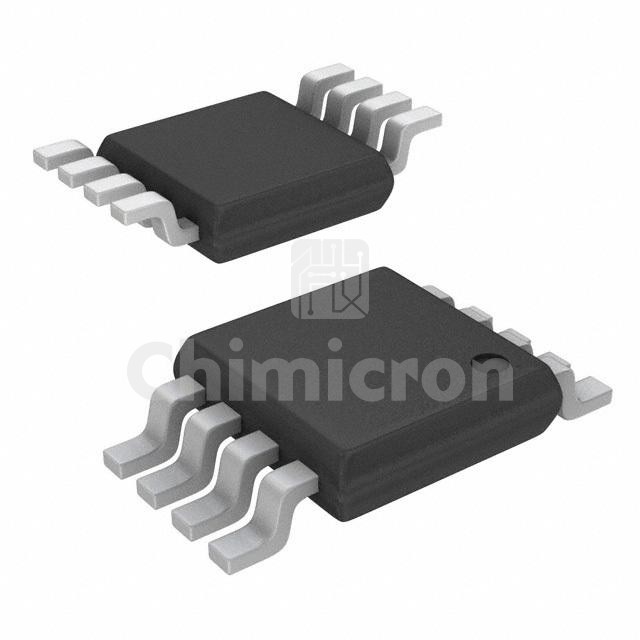

Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package8-MSOP
