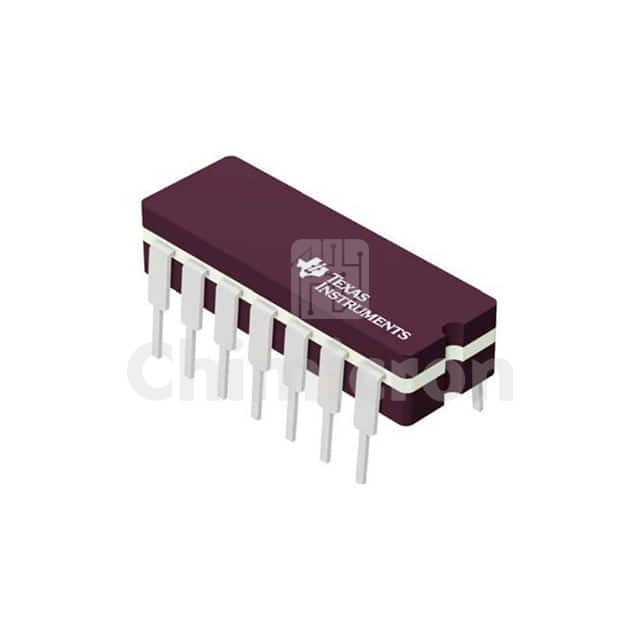

SN74HC4066N
Manufacturer: Texas
Description: IC SWITCH QUAD 1X1 14DIP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:897
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SN74HC4066N Texas at chimicron.com. We have 897 pieces of SN74HC4066N in stock available now. Submit an inquiry for SN74HC4066N or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)30Ohm (Typ)
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)2V ~ 6V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)31ns, 34ns
-3db Bandwidth30MHz
Charge Injection-
Channel Capacitance (CS(off), CD(off))0.5pF, 9pF
Current - Leakage (IS(off)) (Max)100nA
Crosstalk-45dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case14-DIP (0.300", 7.62mm)
Supplier Device Package14-PDIP
