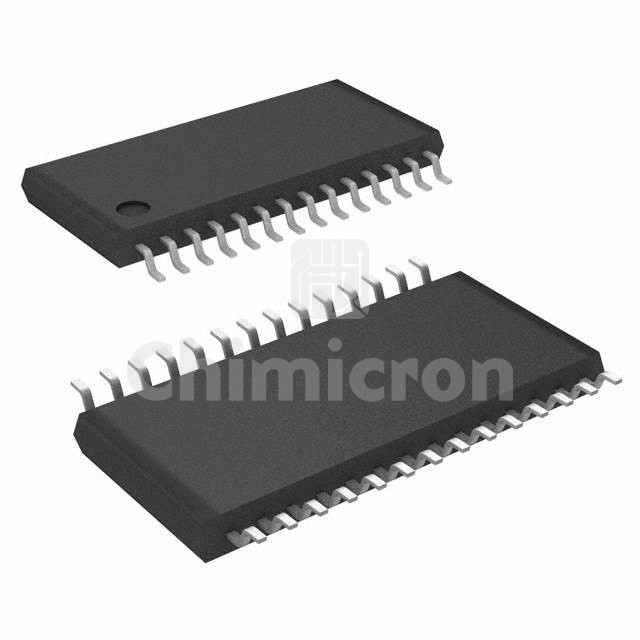

ADG5206BRUZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER 1 X 16:1 28TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG5206BRUZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 50000 pieces of ADG5206BRUZ in stock available now. Submit an inquiry for ADG5206BRUZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit16:1
Number of Circuits1
On-State Resistance (Max)160Ohm
Channel-to-Channel Matching (ΔRon)4Ohm
Voltage - Supply, Single (V+)9V ~ 40V
Voltage - Supply, Dual (V±)±9V ~ 22V
Switch Time (Ton, Toff) (Max)230ns, 185ns
-3db Bandwidth65MHz
Charge Injection0.45pC
Channel Capacitance (CS(off), CD(off))3.3pf, 62pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-76dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package28-TSSOP
