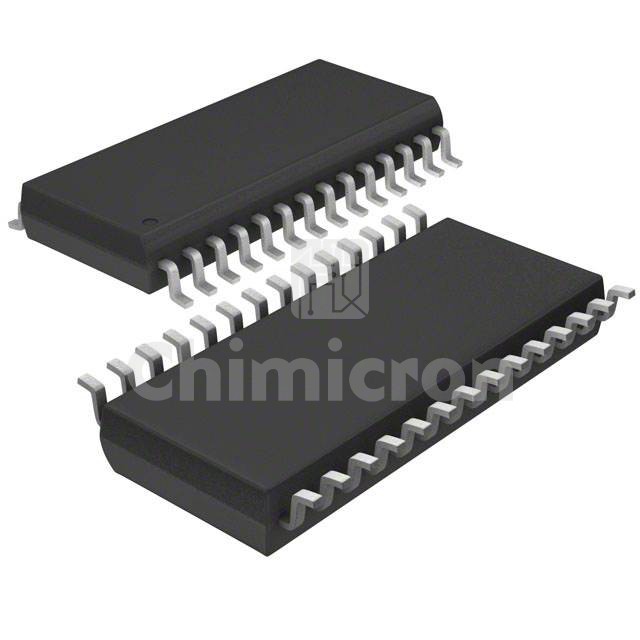

MUX506IPWR
Manufacturer: Texas
Description: IC MUX 16:1 170 OHM 28-TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:1004500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MUX506IPWR Texas at chimicron.com. We have 1004500 pieces of MUX506IPWR in stock available now. Submit an inquiry for MUX506IPWR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit16:1
Number of Circuits1
On-State Resistance (Max)200Ohm
Channel-to-Channel Matching (ΔRon)6Ohm
Voltage - Supply, Single (V+)10V ~ 36V
Voltage - Supply, Dual (V±)±5V ~ 18V
Switch Time (Ton, Toff) (Max)136ns, 78ns
-3db Bandwidth-
Charge Injection0.31pC
Channel Capacitance (CS(off), CD(off))3pF, 12.2pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-100dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package28-TSSOP
