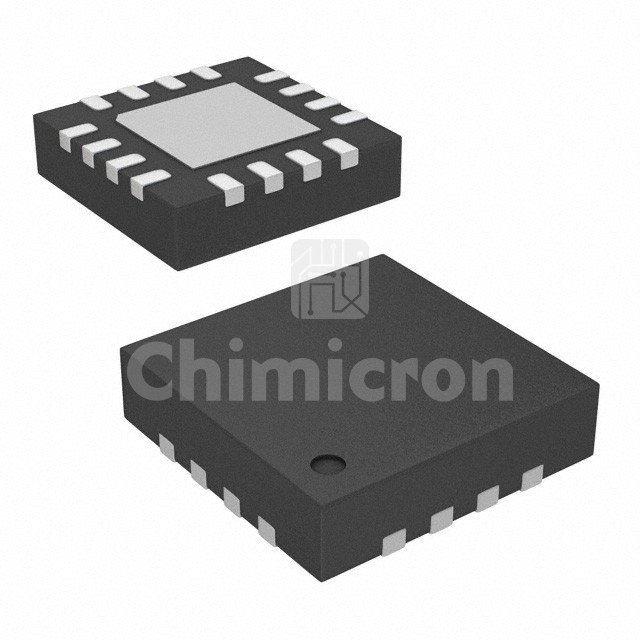

ADG4612BCPZ-REEL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH QUAD SPST 16LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:6000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG4612BCPZ-REEL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 6000 pieces of ADG4612BCPZ-REEL7 in stock available now. Submit an inquiry for ADG4612BCPZ-REEL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)5.1Ohm
Channel-to-Channel Matching (ΔRon)50mOhm
Voltage - Supply, Single (V+)3V ~ 12V
Voltage - Supply, Dual (V±)±3V ~ 5.5V
Switch Time (Ton, Toff) (Max)73ns, 91ns
-3db Bandwidth250MHz
Charge Injection292pC
Channel Capacitance (CS(off), CD(off))11.5pF, 11.5pF
Current - Leakage (IS(off)) (Max)10nA
Crosstalk-74dB @ 1MHz
Operating Temperature-40°C ~ 105°C (TA)
Mounting TypeSurface Mount
Package / Case16-WFQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP-WQ (3x3)
