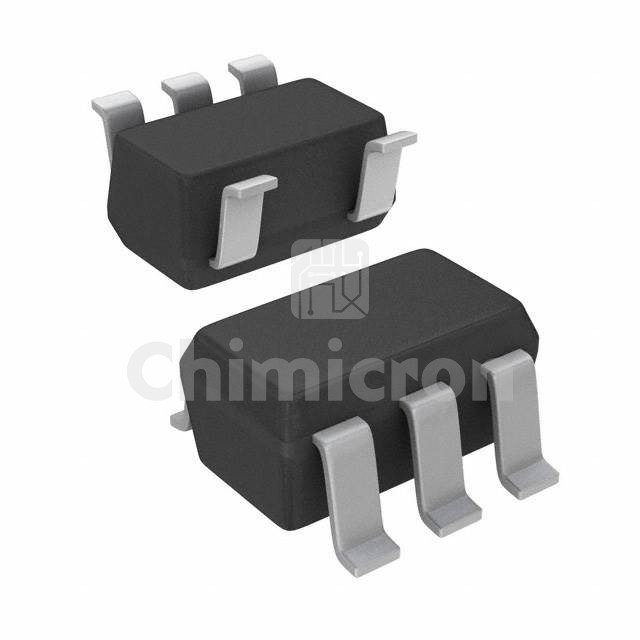

TS12A4514DBVR
Manufacturer: Texas
Description: IC SWITCH SPST SOT23-5
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:186869
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TS12A4514DBVR Texas at chimicron.com. We have 186869 pieces of TS12A4514DBVR in stock available now. Submit an inquiry for TS12A4514DBVR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits1
On-State Resistance (Max)10Ohm
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)2.7V ~ 12V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)75ns, 45ns
-3db Bandwidth520MHz
Charge Injection-11.5pC
Channel Capacitance (CS(off), CD(off))7.5pF, 7.5pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / CaseSC-74A, SOT-753
Supplier Device PackageSOT-23-5
