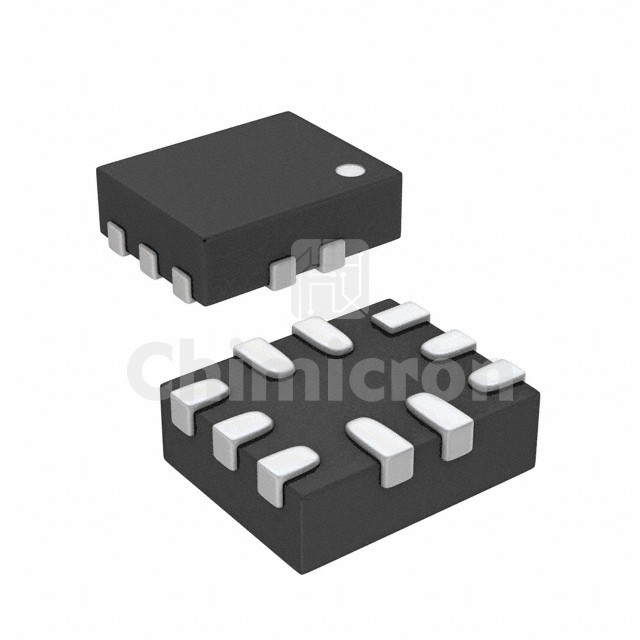

ADG824BCPZ-REEL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH DUAL SPDT 10LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG824BCPZ-REEL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 100000 pieces of ADG824BCPZ-REEL7 in stock available now. Submit an inquiry for ADG824BCPZ-REEL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)800mOhm
Channel-to-Channel Matching (ΔRon)3mOhm
Voltage - Supply, Single (V+)1.65V ~ 3.6V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)9.5ns, 7.7ns
-3db Bandwidth90MHz
Charge Injection27pC
Channel Capacitance (CS(off), CD(off))25pF
Current - Leakage (IS(off)) (Max)200pA (Typ)
Crosstalk-90dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case10-UFQFN, CSP
Supplier Device Package10-LFCSP-UQ (1.6x1.3)
