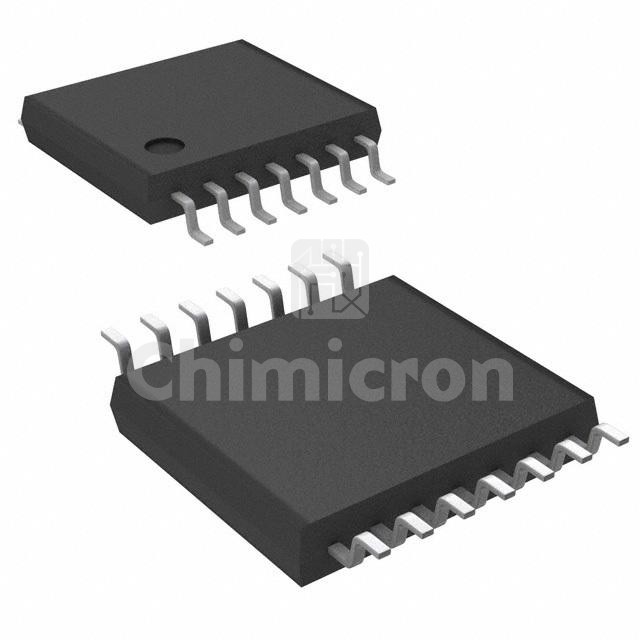

ADG1604BRUZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER 4X1 14TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1604BRUZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 1000 pieces of ADG1604BRUZ in stock available now. Submit an inquiry for ADG1604BRUZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits1
On-State Resistance (Max)1.1Ohm
Channel-to-Channel Matching (ΔRon)30mOhm
Voltage - Supply, Single (V+)3.3V ~ 16V
Voltage - Supply, Dual (V±)±3.3V ~ 8V
Switch Time (Ton, Toff) (Max)95ns, 173ns
-3db Bandwidth19MHz
Charge Injection125pC
Channel Capacitance (CS(off), CD(off))60pF, 270pF
Current - Leakage (IS(off)) (Max)200pA
Crosstalk-70dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package14-TSSOP
