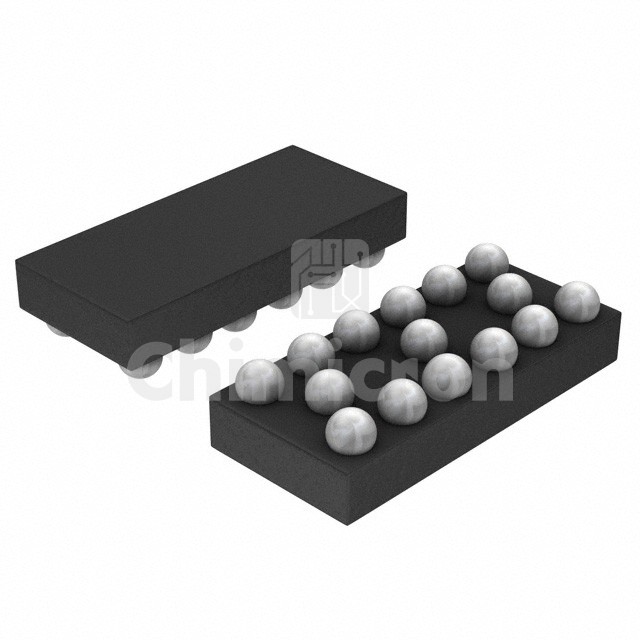

CM1420-03CP
Manufacturer: Rochester Electronics
Description: DATA LINE FILTER, 6 FUNCTION(S),
Category : Filters
Family: EMI/RFI Filters (LC, RC Networks)
Series: -
In Stock:350000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CM1420-03CP Rochester Electronics at chimicron.com. We have 350000 pieces of CM1420-03CP in stock available now. Submit an inquiry for CM1420-03CP or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
TypeLow Pass
Filter Order2nd
TechnologyRC (Pi)
Number of Channels6
Center / Cutoff Frequency120MHz (Cutoff)
Attenuation Value30dB @ 1GHz ~ 3GHz
Resistance - Channel (Ohms)100
Current-
ValuesR = 100Ohms, C = 15pF
ESD ProtectionYes
Operating Temperature-40°C ~ 85°C
ApplicationsData Lines for Mobile Devices
Voltage - Rated-
Mounting TypeSurface Mount
Package / Case15-WFBGA, WLCSP
Size / Dimension0.117" L x 0.052" W (2.96mm x 1.33mm)
Height0.028" (0.70mm)
Related Parts for CM1420-03CP
Vishay General Semiconductor – Diodes Division
VEMI85AA-HGK-GS08FILTER RC(PI) 100 OHM/36PF SMD
In Stock: 45000
