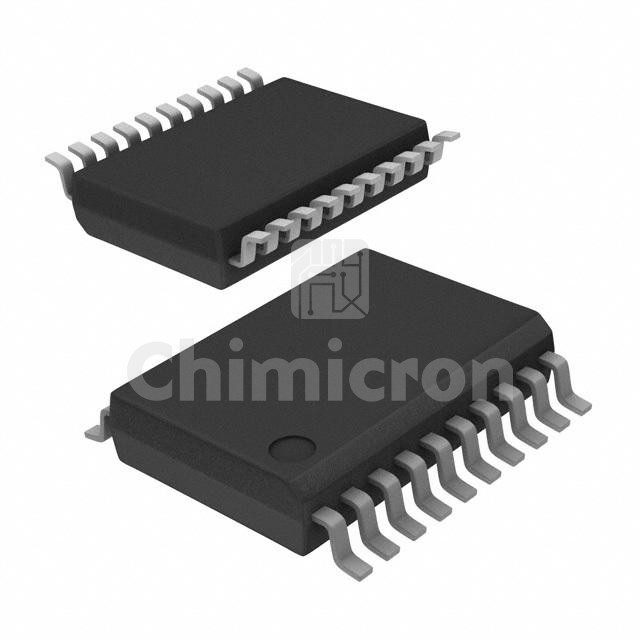

ADUM3472ARSZ-RL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: DGTL ISO 2500VRMS 4CH GP 20SSOP
Category : Isolators
Family: Digital Isolators
Series: iCoupler®
In Stock:1260
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADUM3472ARSZ-RL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 1260 pieces of ADUM3472ARSZ-RL7 in stock available now. Submit an inquiry for ADUM3472ARSZ-RL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesiCoupler®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TechnologyMagnetic Coupling
TypeGeneral Purpose
Isolated PowerNo
Number of Channels4
Inputs - Side 1/Side 22/2
Channel TypeUnidirectional
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)25kV/µs
Data Rate1Mbps
Propagation Delay tpLH / tpHL (Max)100ns, 100ns
Pulse Width Distortion (Max)40ns
Rise / Fall Time (Typ)2.5ns, 2.5ns
Voltage - Supply3V ~ 3.6V, 4.5V ~ 5.5V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case20-SSOP (0.209", 5.30mm Width)
Supplier Device Package20-SSOP
