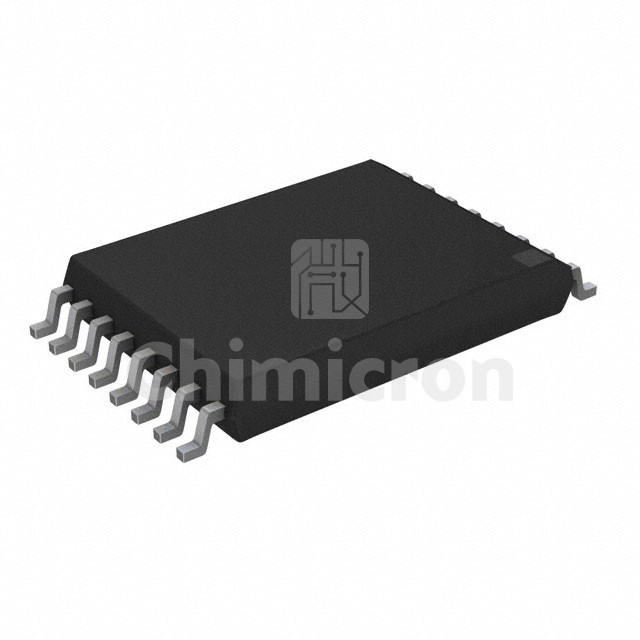

ISO7842DWWR
Manufacturer: Texas
Description: DGTL ISO 5700VRMS 4CH GP 16SOIC
Category : Isolators
Family: Digital Isolators
Series: -
In Stock:11025
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ISO7842DWWR Texas at chimicron.com. We have 11025 pieces of ISO7842DWWR in stock available now. Submit an inquiry for ISO7842DWWR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TechnologyCapacitive Coupling
TypeGeneral Purpose
Isolated PowerNo
Number of Channels4
Inputs - Side 1/Side 22/2
Channel TypeUnidirectional
Voltage - Isolation5700Vrms
Common Mode Transient Immunity (Min)100kV/µs
Data Rate100Mbps
Propagation Delay tpLH / tpHL (Max)16ns, 16ns
Pulse Width Distortion (Max)4.1ns
Rise / Fall Time (Typ)1.7ns, 1.9ns
Voltage - Supply2.25V ~ 5.5V
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.551", 14.00mm Width)
Supplier Device Package16-SOIC
