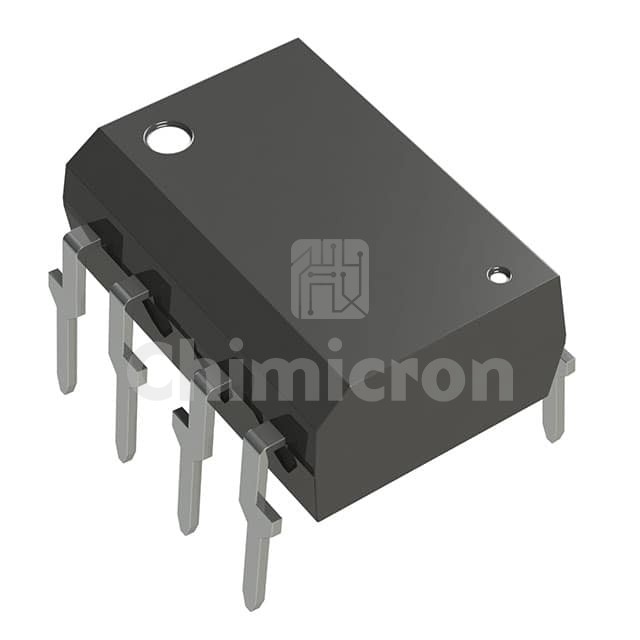

TLP250H(F)
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: X36 PB-F DRIVER COUPLER DIP 8 TH
Category : Isolators
Family: Optoisolators - Logic Output
Series: -
In Stock:14700
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP250H(F) Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 14700 pieces of TLP250H(F) in stock available now. Submit an inquiry for TLP250H(F) or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)40kV/µs
Input TypeDC
Output TypePush-Pull, Totem Pole
Current - Output / Channel2.5 A
Data Rate-
Propagation Delay tpLH / tpHL (Max)500ns, 500ns
Rise / Fall Time (Typ)50ns, 50ns
Voltage - Forward (Vf) (Typ)1.57V
Current - DC Forward (If) (Max)20mA
Voltage - Supply10V ~ 30V
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
