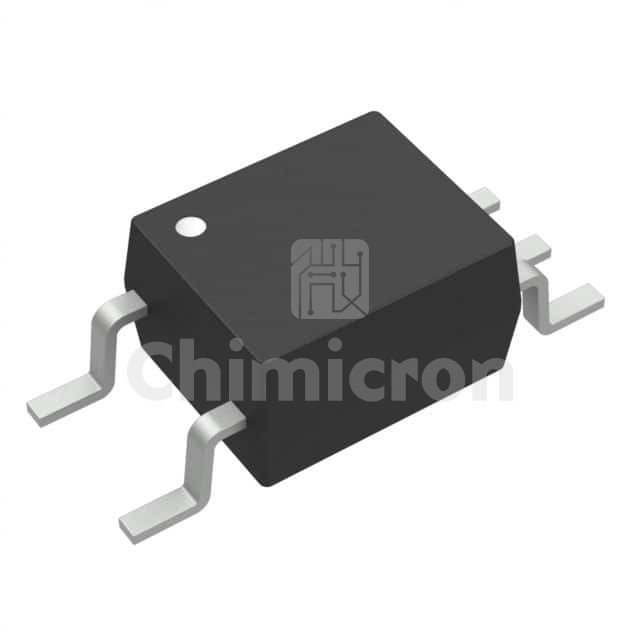

ACPL-M61L-000E
Manufacturer: Broadcom
Description: OPTOISO 3.75KV PUSH PULL 5SO
Category : Isolators
Family: Optoisolators - Logic Output
Series: -
In Stock:18000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ACPL-M61L-000E Broadcom at chimicron.com. We have 18000 pieces of ACPL-M61L-000E in stock available now. Submit an inquiry for ACPL-M61L-000E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)20kV/µs
Input TypeDC
Output TypePush-Pull, Totem Pole
Current - Output / Channel10 mA
Data Rate10MBd
Propagation Delay tpLH / tpHL (Max)80ns, 80ns
Rise / Fall Time (Typ)12ns, 12ns
Voltage - Forward (Vf) (Typ)1.3V
Current - DC Forward (If) (Max)8mA
Voltage - Supply2.7V ~ 5.5V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package5-SO
