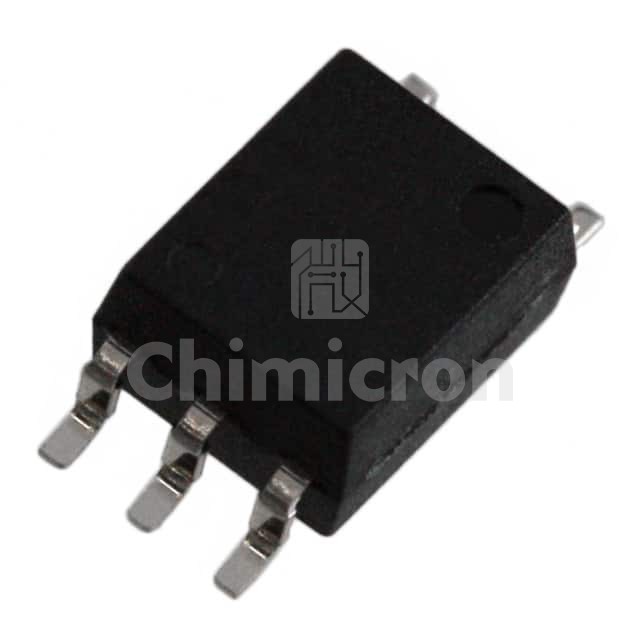

TLP2303(TPL,E
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: OPTOISO 3.75KV TRANS 6-SO 5 LEAD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:10500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP2303(TPL,E Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 10500 pieces of TLP2303(TPL,E in stock available now. Submit an inquiry for TLP2303(TPL,E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)500% @ 5mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)18V
Current - Output / Channel80mA
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package6-SO, 5 Lead
