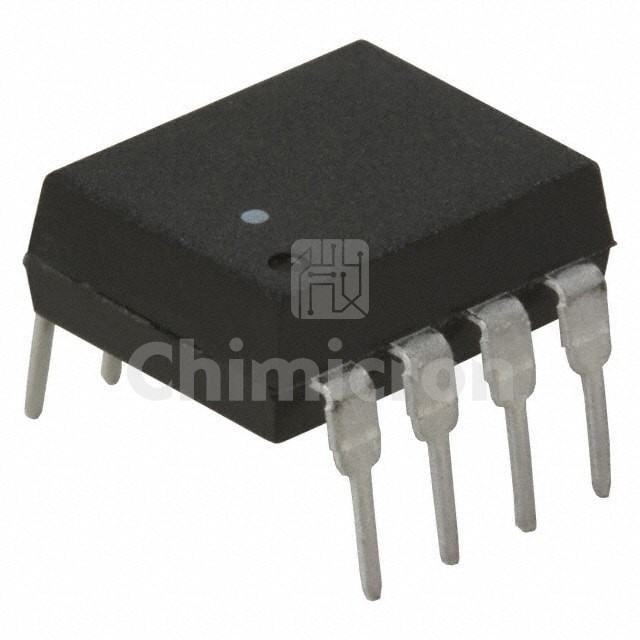

HCNW4503
Manufacturer: Broadcom
Description: OPTOISOLATOR 5KV TRANSISTOR 8DIP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HCNW4503 Broadcom at chimicron.com. We have 50000 pieces of HCNW4503 in stock available now. Submit an inquiry for HCNW4503 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)15% @ 16mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)1µs, 1µs (Max)
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.68V
Current - DC Forward (If) (Max)25 mA
Vce Saturation (Max)-
Operating Temperature-55°C ~ 85°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.400", 10.16mm)
Supplier Device Package8-DIP
