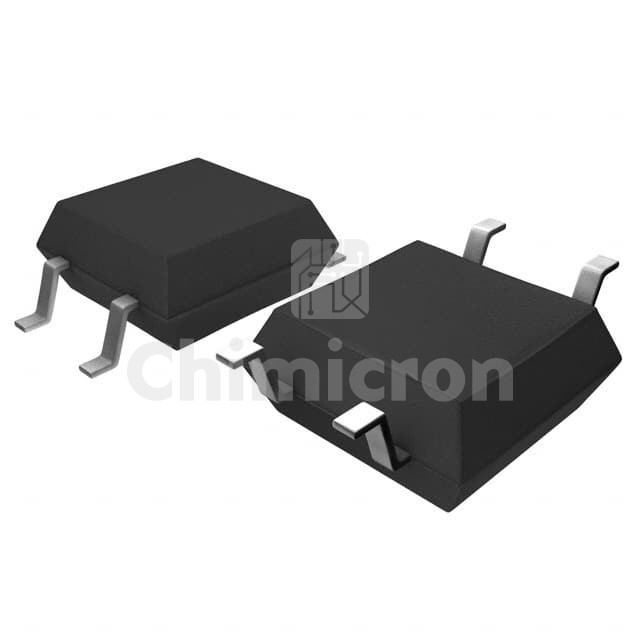

APV1121S
Manufacturer: Panasonic
Description: OPTOISO 2.5KV PHOTOVOLTAIC 4-SOP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:1155
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the APV1121S Panasonic at chimicron.com. We have 1155 pieces of APV1121S in stock available now. Submit an inquiry for APV1121S or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)-
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)400µs, 100µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypePhotovoltaic
Voltage - Output (Max)8.7V
Current - Output / Channel14µA
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SOP
