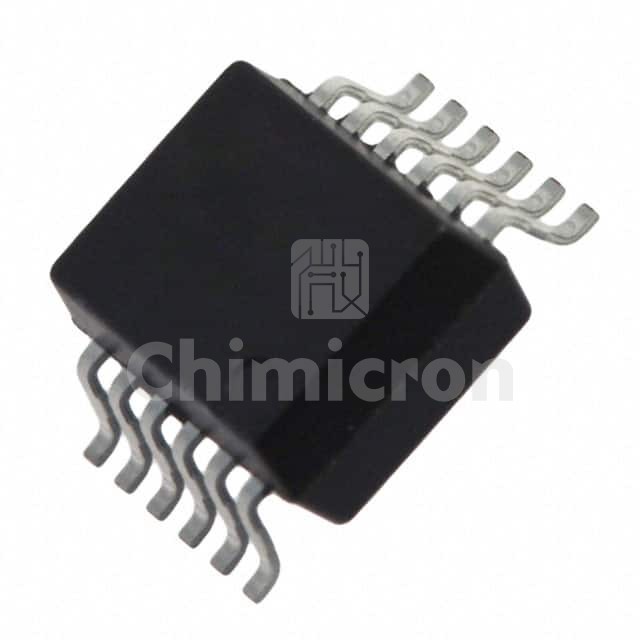

PS2841-4A-F3-AX
Manufacturer: Renesas Electronics America
Description: OPTOISO 1.5KV 4CH TRANS 12BSOP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: NEPOC
In Stock:1680
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PS2841-4A-F3-AX Renesas Electronics America at chimicron.com. We have 1680 pieces of PS2841-4A-F3-AX in stock available now. Submit an inquiry for PS2841-4A-F3-AX or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNEPOC
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels4
Voltage - Isolation1500Vrms
Current Transfer Ratio (Min)100% @ 1mA
Current Transfer Ratio (Max)400% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)20µs, 110µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)70V
Current - Output / Channel20mA
Voltage - Forward (Vf) (Typ)1.1V
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)300mV
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case12-BSOP (0.173", 4.40mm Width)
Supplier Device Package12-SSOP
