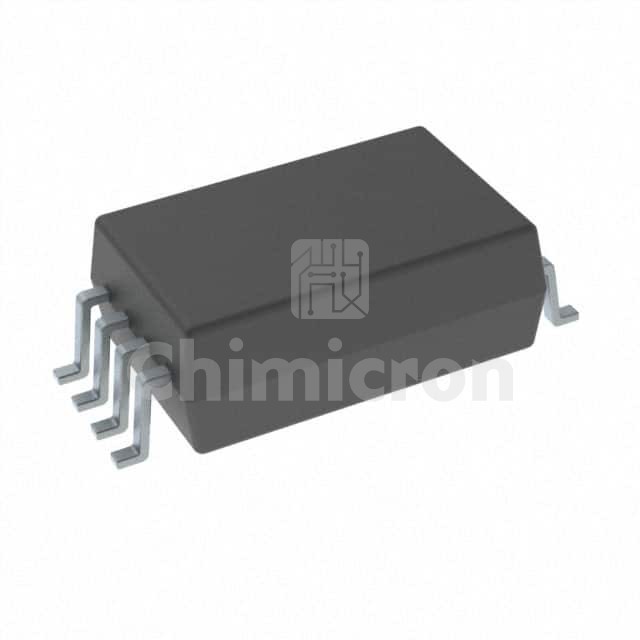

ACNU-250L-000E
Manufacturer: Broadcom
Description: 11MM OPTOCOUPLER (1MBD)
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:10000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ACNU-250L-000E Broadcom at chimicron.com. We have 10000 pieces of ACNU-250L-000E in stock available now. Submit an inquiry for ACNU-250L-000E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)23% @ 12mA
Current Transfer Ratio (Max)53% @ 12mA
Turn On / Turn Off Time (Typ)0.3µs, 0.7µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)30V
Current - Output / Channel12mA
Voltage - Forward (Vf) (Typ)0.8V
Current - DC Forward (If) (Max)18 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.378", 9.60mm Width)
Supplier Device Package8-SO Stretched
