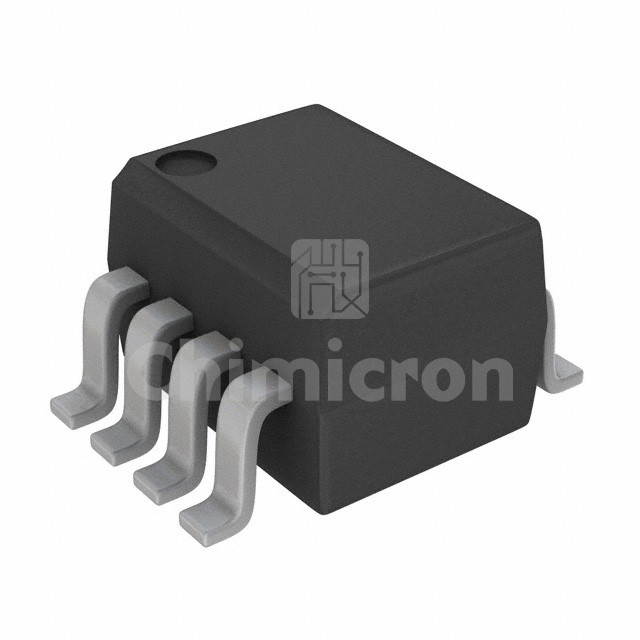

ACPL-227-500E
Manufacturer: Broadcom
Description: OPTOISOLATOR 3KV 2CH TRANS 8SOIC
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:4200
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ACPL-227-500E Broadcom at chimicron.com. We have 4200 pieces of ACPL-227-500E in stock available now. Submit an inquiry for ACPL-227-500E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels2
Voltage - Isolation3000Vrms
Current Transfer Ratio (Min)50% @ 5mA
Current Transfer Ratio (Max)600% @ 5mA
Turn On / Turn Off Time (Typ)3µs, 3µs
Rise / Fall Time (Typ)2µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 110°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.173", 4.40mm Width)
Supplier Device Package8-SO
