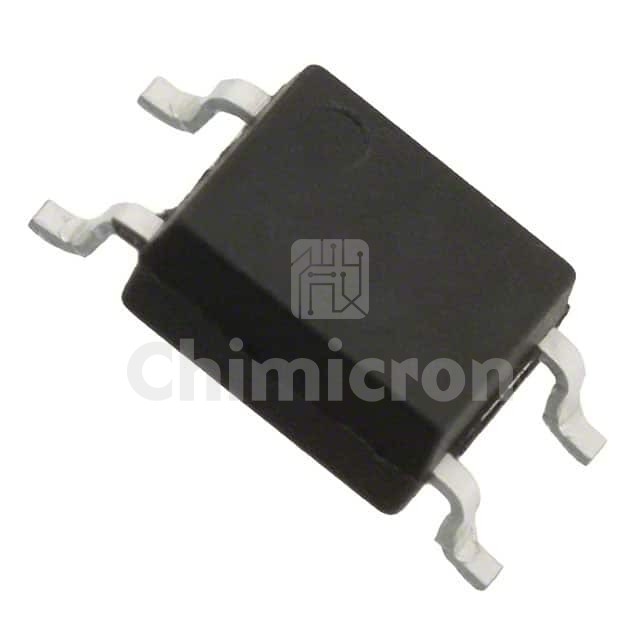

HCPL-354-00AE
Manufacturer: Broadcom
Description: OPTOISO 3.75KV TRANS 4MINIFLAT
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:700000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HCPL-354-00AE Broadcom at chimicron.com. We have 700000 pieces of HCPL-354-00AE in stock available now. Submit an inquiry for HCPL-354-00AE or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)50% @ 1mA
Current Transfer Ratio (Max)150% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeAC, DC
Output TypeTransistor
Voltage - Output (Max)35V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)200mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-Mini-Flat
