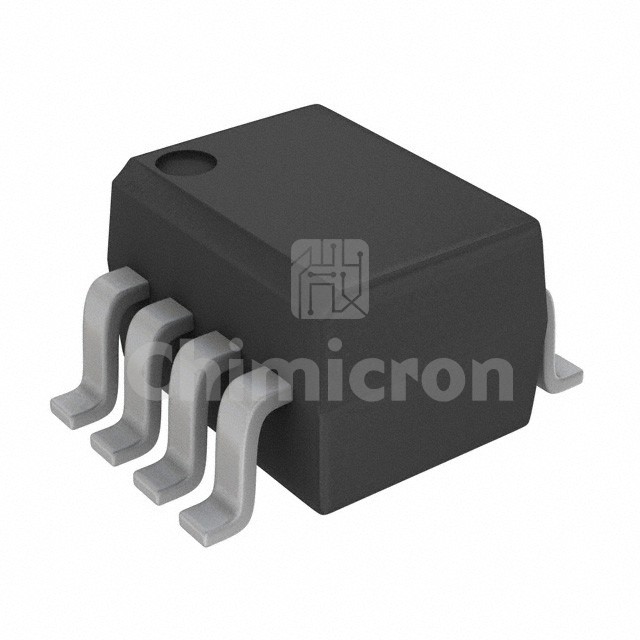

IL205AT
Manufacturer: Vishay / Semiconductor - Opto Division
Description: OPTOISO 4KV TRANS W/BASE 8SOIC
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IL205AT Vishay / Semiconductor - Opto Division at chimicron.com. We have 1000 pieces of IL205AT in stock available now. Submit an inquiry for IL205AT or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Voltage - Isolation4000Vrms
Current Transfer Ratio (Min)40% @ 10mA
Current Transfer Ratio (Max)80% @ 10mA
Turn On / Turn Off Time (Typ)3µs, 3µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)70V
Current - Output / Channel-
Voltage - Forward (Vf) (Typ)1.3V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
