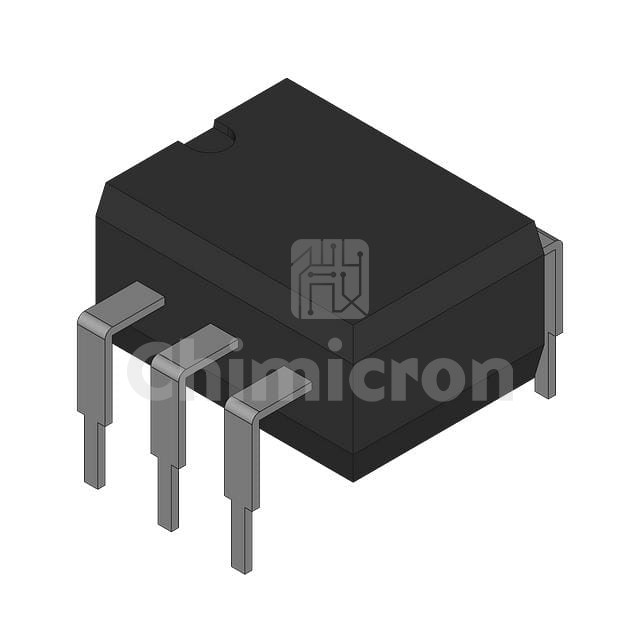

H11D1SD
Manufacturer: Rochester Electronics
Description: TRANSISTOR OUTPUT OPTOCOUPLER
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the H11D1SD Rochester Electronics at chimicron.com. We have 300000 pieces of H11D1SD in stock available now. Submit an inquiry for H11D1SD or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusObsolete
Number of Channels1
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)20% @ 10mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)5µs, 5µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)300V
Current - Output / Channel100mA
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)80 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
