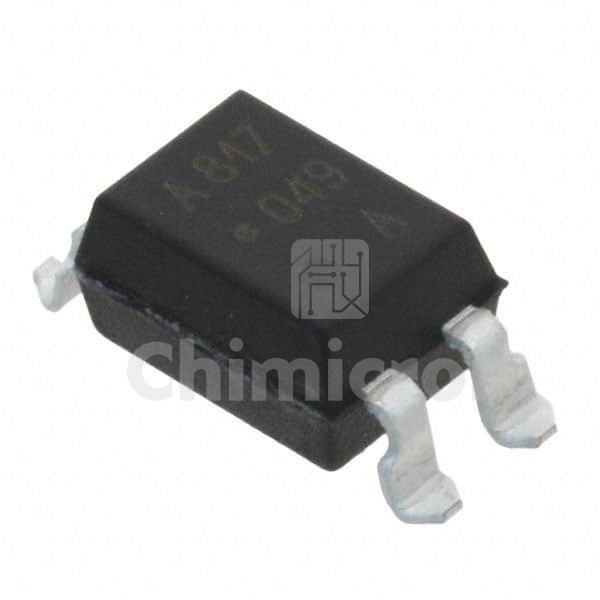

HCPL-817-56BE
Manufacturer: Broadcom
Description: OPTOISOLATOR 5KV TRANSISTOR 4SMD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:4200
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HCPL-817-56BE Broadcom at chimicron.com. We have 4200 pieces of HCPL-817-56BE in stock available now. Submit an inquiry for HCPL-817-56BE or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)130% @ 5mA
Current Transfer Ratio (Max)260% @ 5mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)70V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)200mV
Operating Temperature-30°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SMD
