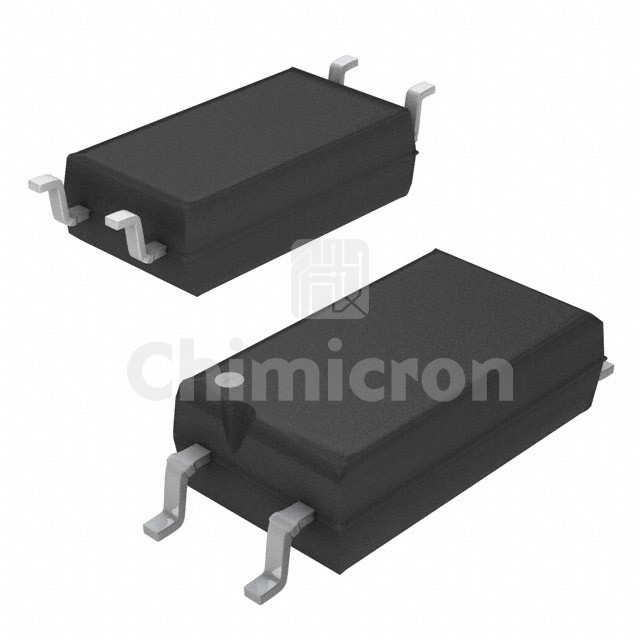

TCLT1018
Manufacturer: Vishay / Semiconductor - Opto Division
Description: OPTOISOLATOR 5KV TRANS SOP-6L4
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:395115
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TCLT1018 Vishay / Semiconductor - Opto Division at chimicron.com. We have 395115 pieces of TCLT1018 in stock available now. Submit an inquiry for TCLT1018 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)130% @ 5mA
Current Transfer Ratio (Max)260% @ 5mA
Turn On / Turn Off Time (Typ)6µs, 5µs
Rise / Fall Time (Typ)3µs, 4.7µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)70V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 110°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-LSOP (2.54mm)
