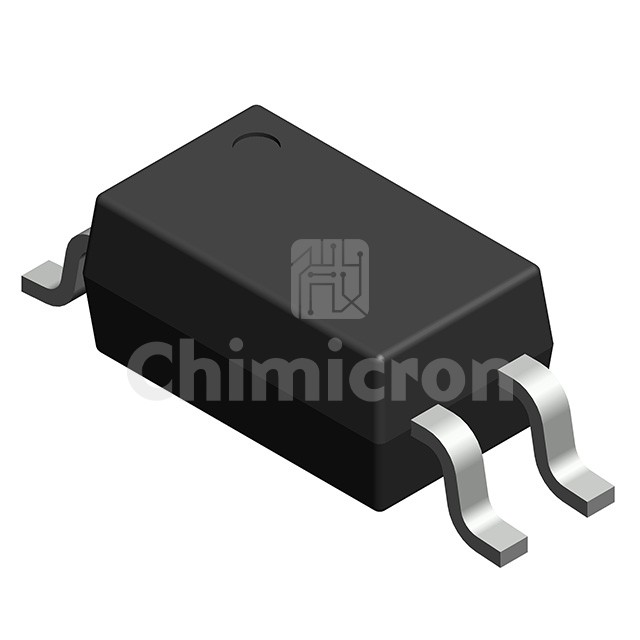

PS2811-1-M-A
Manufacturer: CEL (California Eastern Laboratories)
Description: OPTOISOLATOR 2.5KV TRANS 4SOIC
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: NEPOC
In Stock:2100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PS2811-1-M-A CEL (California Eastern Laboratories) at chimicron.com. We have 2100 pieces of PS2811-1-M-A in stock available now. Submit an inquiry for PS2811-1-M-A or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNEPOC
PackageStrip
Part StatusDiscontinued at Digi-Key
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)100% @ 1mA
Current Transfer Ratio (Max)200% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 5µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)40V
Current - Output / Channel40mA
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SOIC (0.173", 4.40mm Width)
Supplier Device Package4-SSOP
