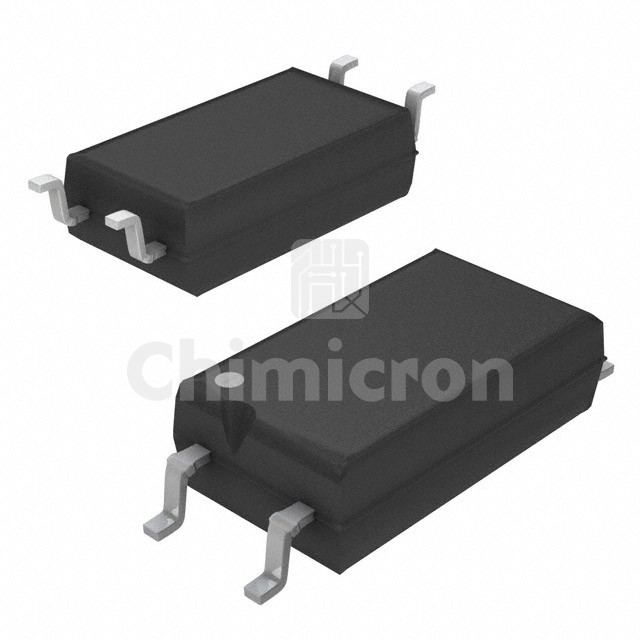

TLP383(D4GB-TL,E
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: TRANSISTOR OPTOCOUPLER LOW CURRE
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:575521
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP383(D4GB-TL,E Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 575521 pieces of TLP383(D4GB-TL,E in stock available now. Submit an inquiry for TLP383(D4GB-TL,E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)100% @ 5mA
Current Transfer Ratio (Max)600% @ 5mA
Turn On / Turn Off Time (Typ)3µs, 3µs
Rise / Fall Time (Typ)2µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.295", 7.50mm Width), 4 Leads
Supplier Device Package6-SO, 4 Lead
