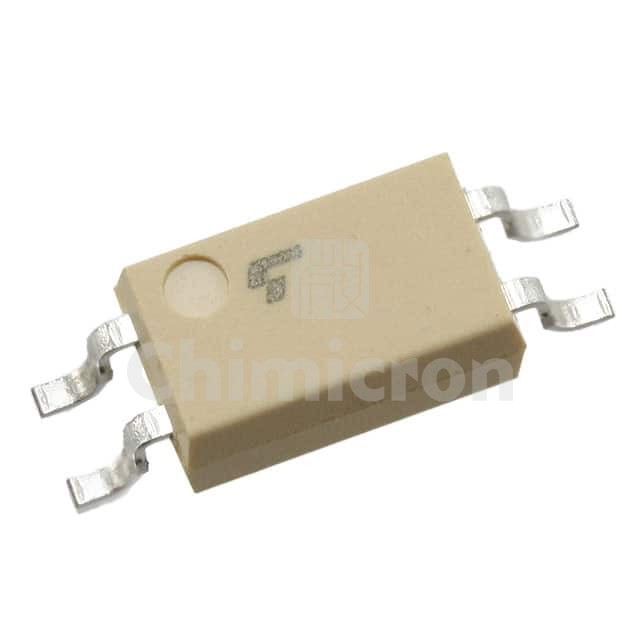

TLP290(SE
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: X36 PB-F PHOTOCOUPLER SO4 BULK
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:2000000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP290(SE Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 2000000 pieces of TLP290(SE in stock available now. Submit an inquiry for TLP290(SE or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)50% @ 5mA
Current Transfer Ratio (Max)600% @ 5mA
Turn On / Turn Off Time (Typ)3µs, 3µs
Rise / Fall Time (Typ)2µs, 3µs
Input TypeAC, DC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 110°C
Mounting TypeSurface Mount
Package / Case4-SOIC (0.179", 4.55mm Width)
Supplier Device Package4-SO
