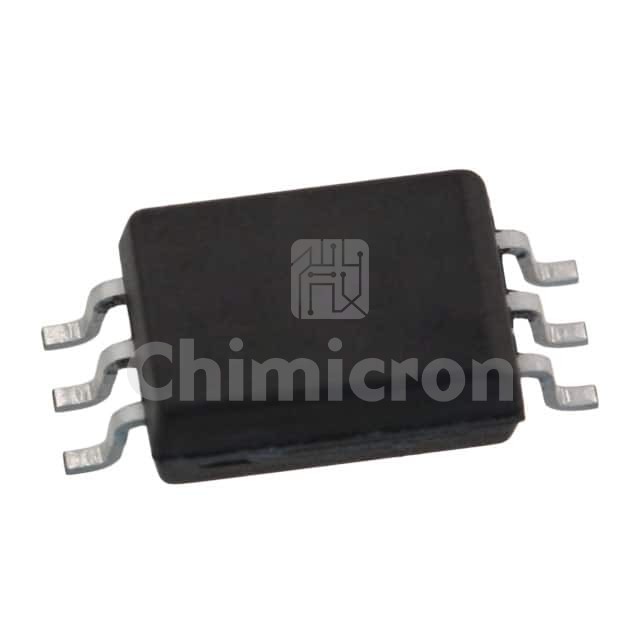

ADUM4120ARIZ-RL
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: DGTL ISO 5KV 1CH GATE DRVR 6SOIC
Category : Isolators
Family: Isolators - Gate Drivers
Series: iCoupler®
In Stock:35780
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADUM4120ARIZ-RL Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 35780 pieces of ADUM4120ARIZ-RL in stock available now. Submit an inquiry for ADUM4120ARIZ-RL or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesiCoupler®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)150kV/µs
Propagation Delay tpLH / tpHL (Max)69ns, 79ns
Pulse Width Distortion (Max)16.5ns
Rise / Fall Time (Typ)18ns, 18ns
Current - Output High, Low-
Current - Peak Output2.3A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply4.5V ~ 35V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.295", 7.50mm Width)
Supplier Device Package6-SOIC-IC
Approval AgencyCSA, UR, VDE
