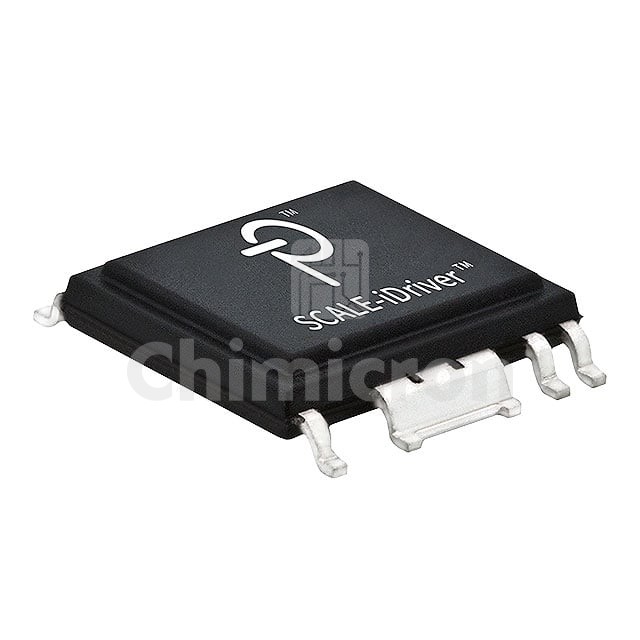

SID1132K-TL
Manufacturer: Power Integrations
Description: DGTL ISO 5KV GATE DRVR ESOP-R16B
Category : Isolators
Family: Isolators - Gate Drivers
Series: SCALE-iDriver™
In Stock:26590
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SID1132K-TL Power Integrations at chimicron.com. We have 26590 pieces of SID1132K-TL in stock available now. Submit an inquiry for SID1132K-TL or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSCALE-iDriver™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)-
Propagation Delay tpLH / tpHL (Max)340ns, 330ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)450ns, 450ns (Max)
Current - Output High, Low1.2A, 1.3A
Current - Peak Output2.5A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply22V ~ 28V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device PackageeSOP-R16B
Approval Agency-
