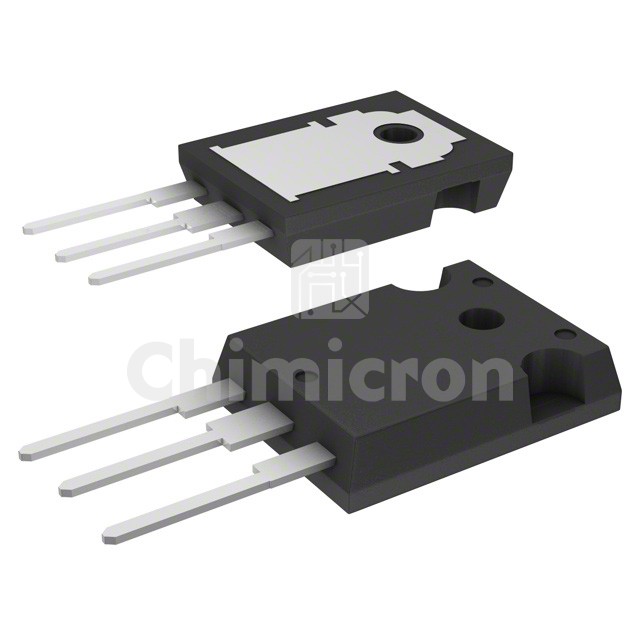

STW16NK60Z
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 600V 14A TO247-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: SuperMESH™
In Stock:60000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STW16NK60Z STMicroelectronics at chimicron.com. We have 60000 pieces of STW16NK60Z in stock available now. Submit an inquiry for STW16NK60Z or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSuperMESH™
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs420mOhm @ 7A, 10V
Vgs(th) (Max) @ Id4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs86 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds2650 pF @ 25 V
FET Feature-
Power Dissipation (Max)190W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3
