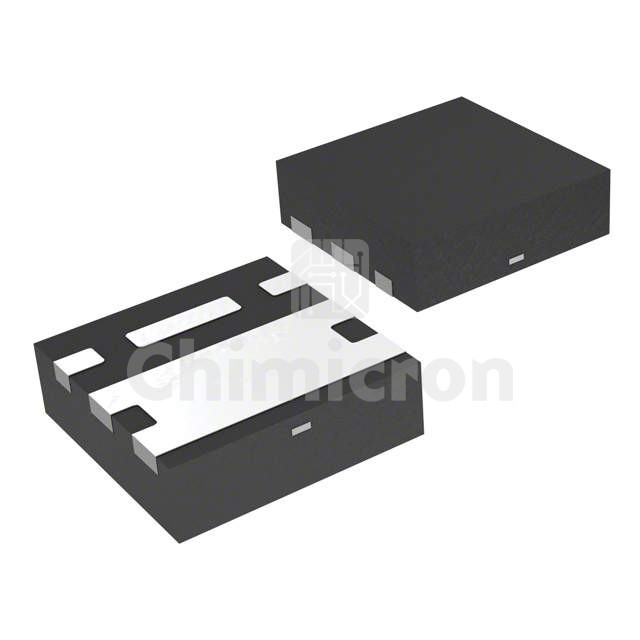

DMP1022UFDE-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET P-CH 12V 9.1A 6UDFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMP1022UFDE-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 300000 pieces of DMP1022UFDE-7 in stock available now. Submit an inquiry for DMP1022UFDE-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C9.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.2V, 4.5V
Rds On (Max) @ Id, Vgs16mOhm @ 8.2A, 4.5V
Vgs(th) (Max) @ Id800mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs42.6 nC @ 5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds2953 pF @ 4 V
FET Feature-
Power Dissipation (Max)660mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageU-DFN2020-6 (Type E)
Package / Case6-PowerUDFN
