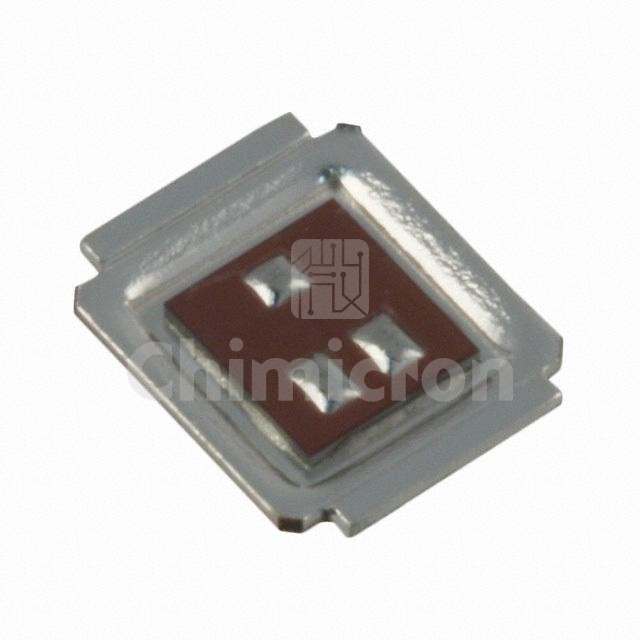

IRF6646TR1PBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 80V 12A DIRECTFET
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:5200
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRF6646TR1PBF IR (Infineon Technologies) at chimicron.com. We have 5200 pieces of IRF6646TR1PBF in stock available now. Submit an inquiry for IRF6646TR1PBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C12A (Ta), 68A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs9.5mOhm @ 12A, 10V
Vgs(th) (Max) @ Id4.9V @ 150µA
Gate Charge (Qg) (Max) @ Vgs50 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2060 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.8W (Ta), 89W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET™ MN
Package / CaseDirectFET™ Isometric MN
