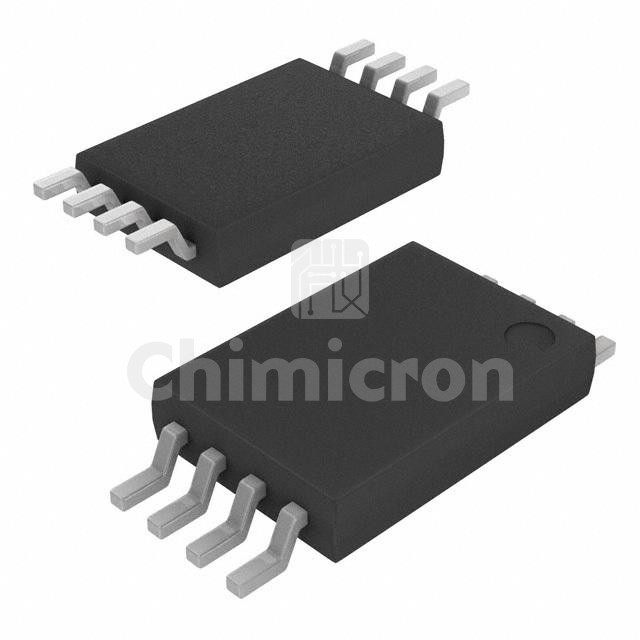

IRF7702
Manufacturer: IR (Infineon Technologies)
Description: MOSFET P-CH 12V 8A 8TSSOP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:400000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRF7702 IR (Infineon Technologies) at chimicron.com. We have 400000 pieces of IRF7702 in stock available now. Submit an inquiry for IRF7702 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTube
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs14mOhm @ 8A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs81 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds3470 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-TSSOP
Package / Case8-TSSOP (0.173", 4.40mm Width)
