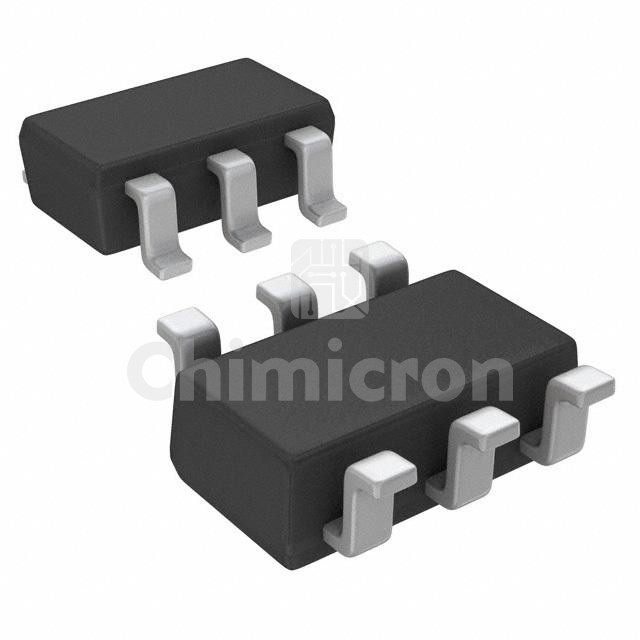

IRF5803
Manufacturer: IR (Infineon Technologies)
Description: MOSFET P-CH 40V 3.4A MICRO6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRF5803 IR (Infineon Technologies) at chimicron.com. We have 300000 pieces of IRF5803 in stock available now. Submit an inquiry for IRF5803 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTube
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C3.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs112mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs37 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1110 pF @ 25 V
FET Feature-
Power Dissipation (Max)2W (Ta)
Operating Temperature-
Mounting TypeSurface Mount
Supplier Device PackageMicro6™(TSOP-6)
Package / CaseSOT-23-6 Thin, TSOT-23-6
