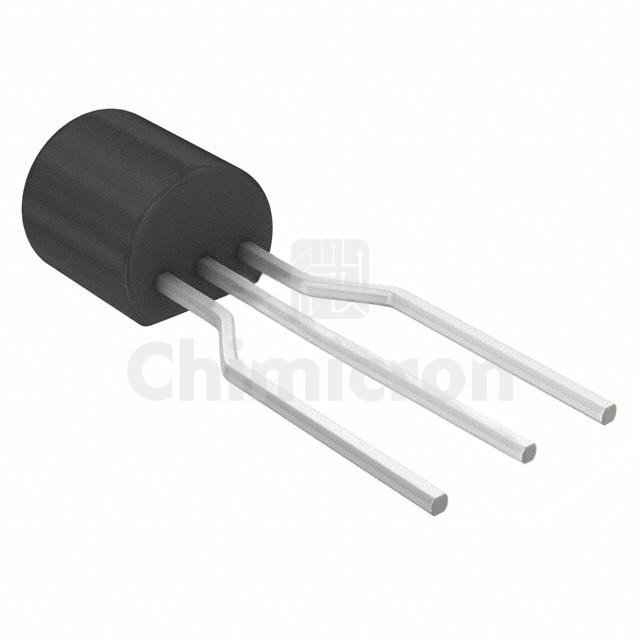

2N7000RLRAG
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 60V 200MA TO92-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:60010
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 2N7000RLRAG Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 60010 pieces of 2N7000RLRAG in stock available now. Submit an inquiry for 2N7000RLRAG or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds60 pF @ 25 V
FET Feature-
Power Dissipation (Max)350mW (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-92-3
Package / CaseTO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
