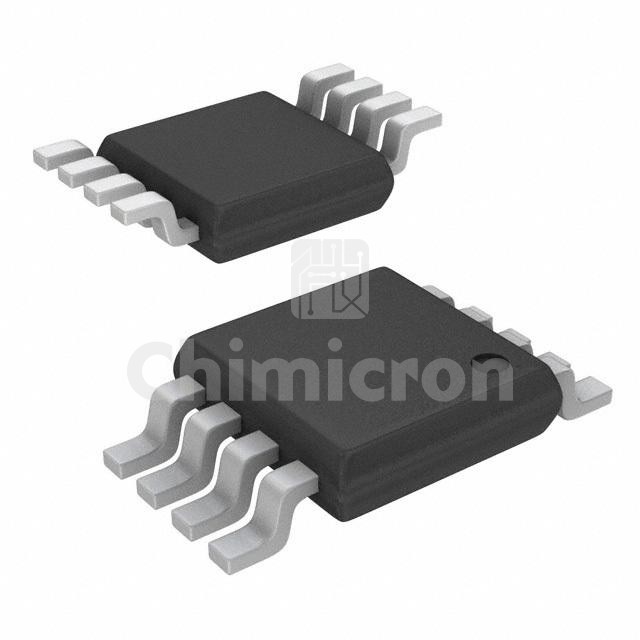

ZXM64N02XTA
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 20V 5.4A 8MSOP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:53300
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZXM64N02XTA Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 53300 pieces of ZXM64N02XTA in stock available now. Submit an inquiry for ZXM64N02XTA or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C5.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.7V, 4.5V
Rds On (Max) @ Id, Vgs40mOhm @ 3.8A, 4.5V
Vgs(th) (Max) @ Id700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs16 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1100 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MSOP
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
