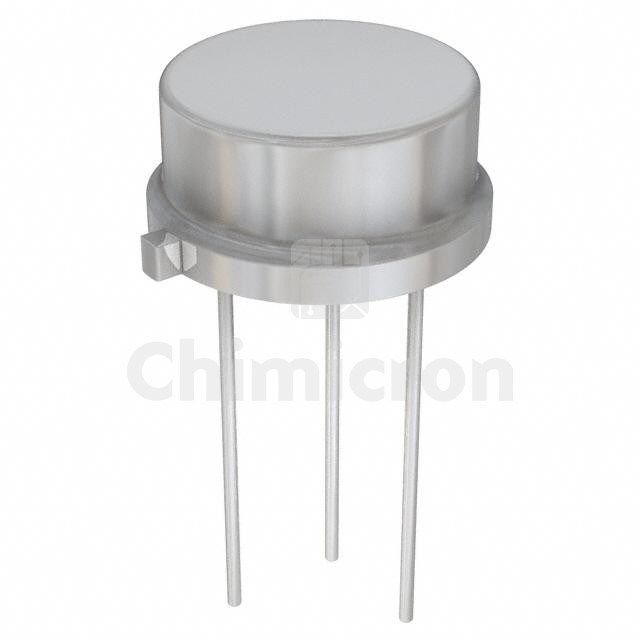

2N6800
Manufacturer: Microsemi
Description: MOSFET N-CH 400V 3A TO39
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 2N6800 Microsemi at chimicron.com. We have 5000 pieces of 2N6800 in stock available now. Submit an inquiry for 2N6800 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)400 V
Current - Continuous Drain (Id) @ 25°C3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1Ohm @ 2A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5.75 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds-
FET Feature-
Power Dissipation (Max)800mW (Ta), 25W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-39
Package / CaseTO-205AF Metal Can
