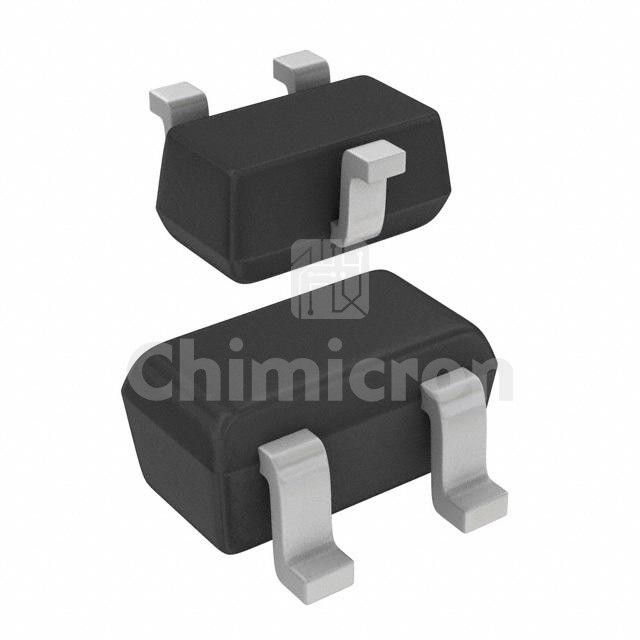

PMR400UN,115
Manufacturer: NXP Semiconductors
Description: MOSFET N-CH 30V 800MA SC75
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: TrenchMOS™
In Stock:9733
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMR400UN,115 NXP Semiconductors at chimicron.com. We have 9733 pieces of PMR400UN,115 in stock available now. Submit an inquiry for PMR400UN,115 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C800mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs480mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.89 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds43 pF @ 25 V
FET Feature-
Power Dissipation (Max)530mW (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-75
Package / CaseSC-75, SOT-416
