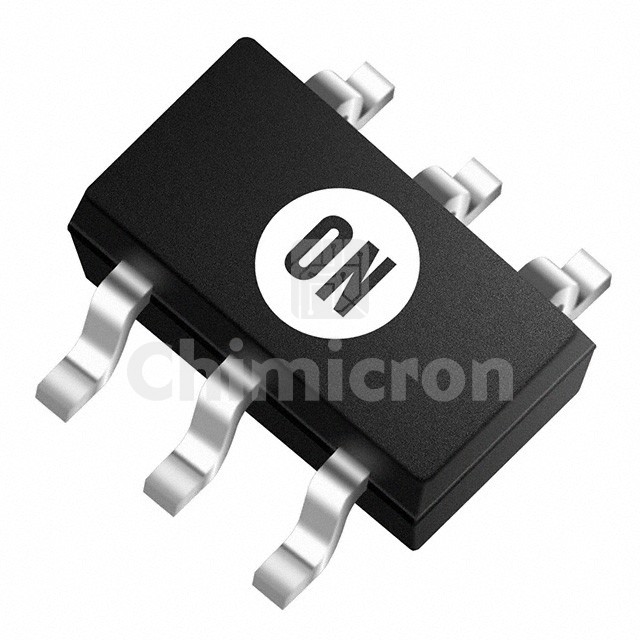

NSR15DW1T1G
NSR15DW1T1G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: DIODE ARRAY SCHOTTKY 15V SC88
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Arrays
Series: -
In Stock:450000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NSR15DW1T1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 450000 pieces of NSR15DW1T1G in stock available now. Submit an inquiry for NSR15DW1T1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Diode Configuration2 Independent
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)15 V
Current - Average Rectified (Io) (per Diode)30mA (DC)
Voltage - Forward (Vf) (Max) @ If680 mV @ 10 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr50 nA @ 1 V
Operating Temperature - Junction-65°C ~ 150°C
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSC-88/SC70-6/SOT-363
