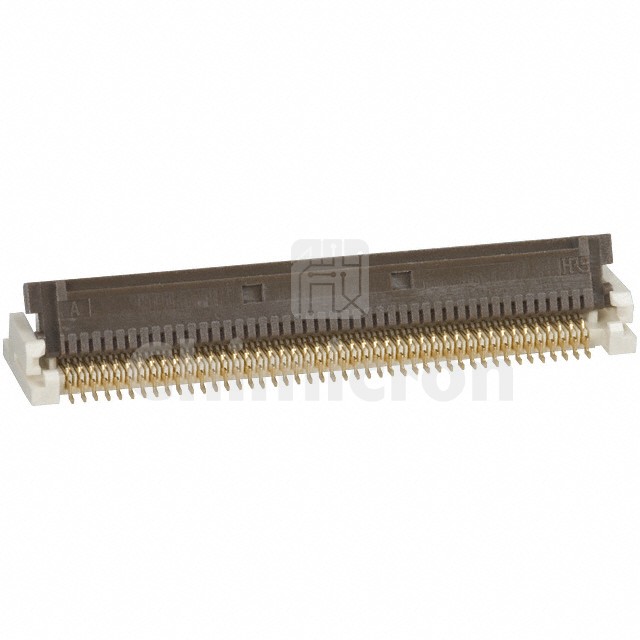

FH16-90S-0.3SHW(05)
Manufacturer: Hirose
Description: CONN FPC BOTTOM 90POS 0.30MM R/A
Category : Connectors, Interconnects
Family: FFC, FPC (Flat Flexible) Connectors
Series: FH16
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FH16-90S-0.3SHW(05) Hirose at chimicron.com. We have 5000 pieces of FH16-90S-0.3SHW(05) in stock available now. Submit an inquiry for FH16-90S-0.3SHW(05) or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesFH16
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Flat Flex TypeFPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Bottom
Number of Positions90
Pitch0.012" (0.30mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.118" (3.00mm)
Locking FeatureFlip Lock
Cable End TypeTabbed
Contact MaterialPhosphor Bronze
Contact FinishGold
Housing MaterialLiquid Crystal Polymer (LCP), Polyamide (PA), Nylon
Actuator MaterialPolyphenylene Sulfide (PPS)
FeaturesPick and Place Cap, Zero Insertion Force (ZIF)
Voltage Rating30V
Operating Temperature-40°C ~ 70°C
Material Flammability RatingUL94 V-0
