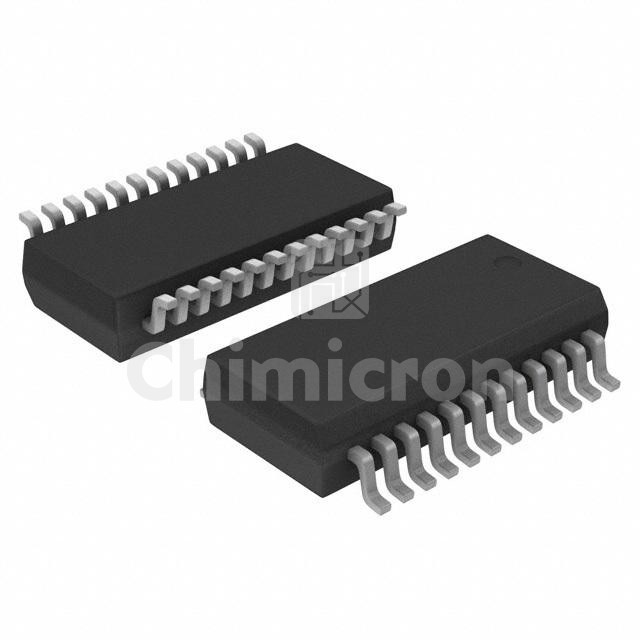

MAX505ACAG
Manufacturer: Maxim Integrated
Description: IC DAC 8BIT V-OUT 24SSOP
Category : Integrated Circuits
Family: Data Acquisition - Digital to Analog Converters (DAC)
Series: -
In Stock:46500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX505ACAG Maxim Integrated at chimicron.com. We have 46500 pieces of MAX505ACAG in stock available now. Submit an inquiry for MAX505ACAG or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Number of Bits8
Number of D/A Converters4
Settling Time6µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog±5V
Voltage - Supply, Digital5V
INL/DNL (LSB)-, ±1 (Max)
ArchitectureR-2R
Operating Temperature0°C ~ 70°C
Package / Case24-SSOP (0.209", 5.30mm Width)
Supplier Device Package24-SSOP
Mounting TypeSurface Mount
