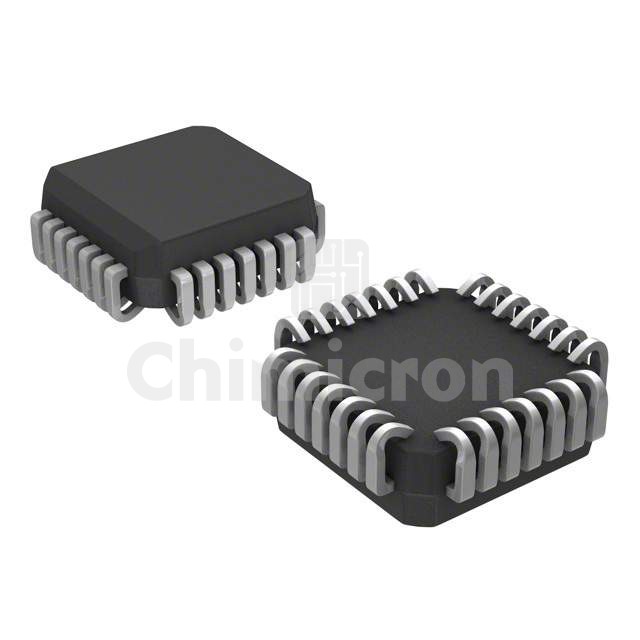

UDK2559EBTR
Manufacturer: Allegro MicroSystems
Description: IC PWR DRIVER BIPOLAR 1:1 28PLCC
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:120260
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UDK2559EBTR Allegro MicroSystems at chimicron.com. We have 120260 pieces of UDK2559EBTR in stock available now. Submit an inquiry for UDK2559EBTR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Switch TypeGeneral Purpose
Number of Outputs4
Ratio - Input:Output1:1
Output ConfigurationLow Side
Output TypeBipolar
InterfaceOn/Off
Voltage - Load60V (Max)
Voltage - Supply (Vcc/Vdd)4.75V ~ 5.25V
Current - Output (Max)700mA
Rds On (Typ)-
Input TypeNon-Inverting
Features-
Fault ProtectionCurrent Limiting (Fixed), Over Temperature
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package28-PLCC (11.51x11.51)
Package / Case28-LCC (J-Lead)
