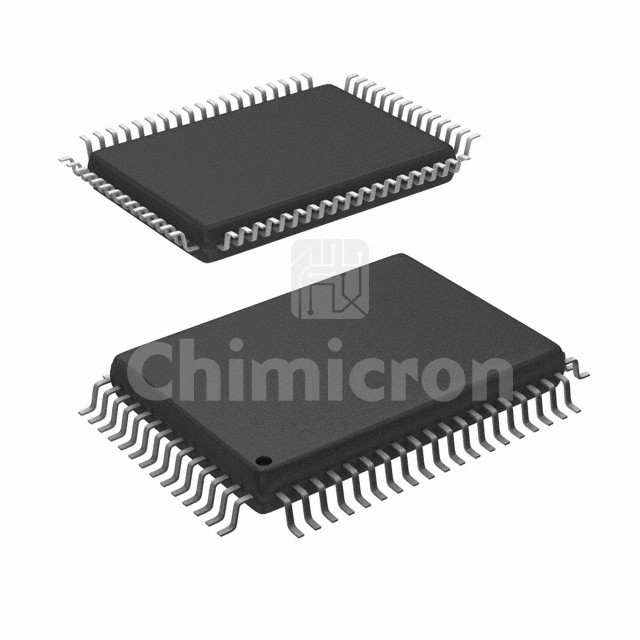

IR21381QPBF
Manufacturer: IR (Infineon Technologies)
Description: IC GATE DRVR HALF-BRIDGE 64MQFP
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:1900
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IR21381QPBF IR (Infineon Technologies) at chimicron.com. We have 1900 pieces of IR21381QPBF in stock available now. Submit an inquiry for IR21381QPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers6
Gate TypeIGBT
Voltage - Supply12.5V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)350mA, 540mA
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)80ns, 25ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case64-BQFP
Supplier Device Package64-MQFP (20x14)
