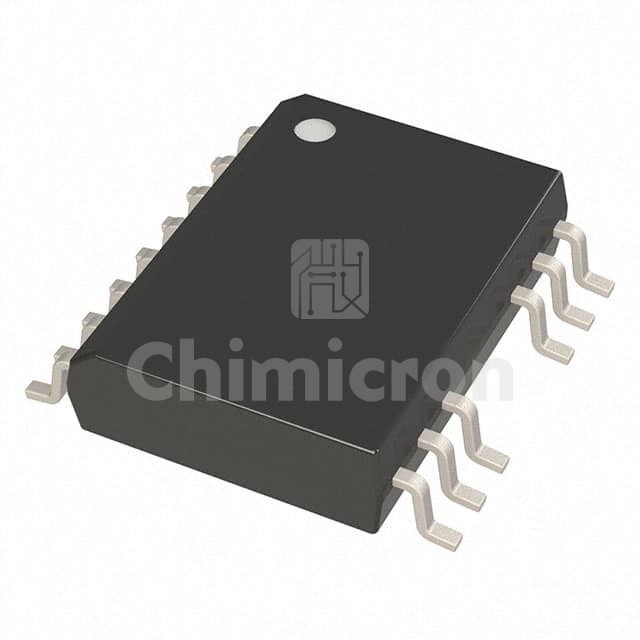

UCC21530QDWKRQ1
Manufacturer: Texas
Description: IC GATE DRVR ISOLATED
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: Automotive, AEC-Q100
In Stock:31794
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UCC21530QDWKRQ1 Texas at chimicron.com. We have 31794 pieces of UCC21530QDWKRQ1 in stock available now. Submit an inquiry for UCC21530QDWKRQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel, P-Channel MOSFET
Voltage - Supply3V ~ 18V
Logic Voltage - VIL, VIH1.2V, 1.6V
Current - Peak Output (Source, Sink)4A, 6A
Input TypeCMOS/TTL
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)6ns, 7ns
Operating Temperature-40°C ~ 130°C (TJ)
Mounting TypeSurface Mount
Package / Case14-SOIC (0.295", 7.50mm Width)
Supplier Device Package14-SOIC
