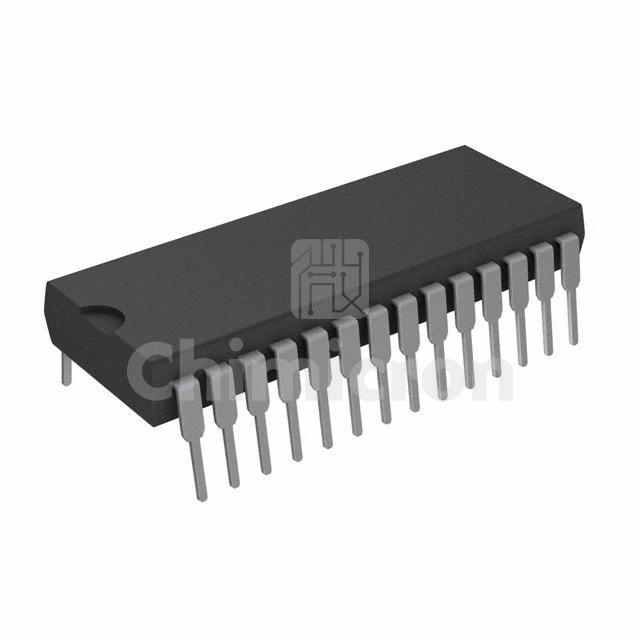

IR2130
Manufacturer: IR (Infineon Technologies)
Description: IC GATE DRVR HALF-BRIDGE 28DIP
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:2500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IR2130 IR (Infineon Technologies) at chimicron.com. We have 2500 pieces of IR2130 in stock available now. Submit an inquiry for IR2130 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers6
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)250mA, 500mA
Input TypeInverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)80ns, 35ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case28-DIP (0.600", 15.24mm)
Supplier Device Package28-PDIP
