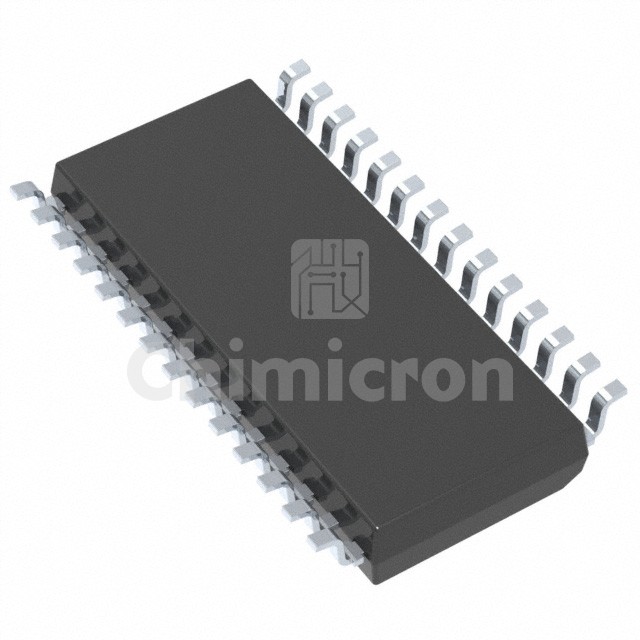

L6204D
Manufacturer: STMicroelectronics
Description: IC MOTOR DRIVER PAR 28SOIC
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L6204D STMicroelectronics at chimicron.com. We have 100000 pieces of L6204D in stock available now. Submit an inquiry for L6204D or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Output ConfigurationHalf Bridge (4)
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologyBCDMOS
Rds On (Typ)1.2Ohm
Current - Output / Channel500mA
Current - Peak Output3A
Voltage - Supply2V ~ 7V
Voltage - Load12V ~ 48V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionOver Temperature
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SO
