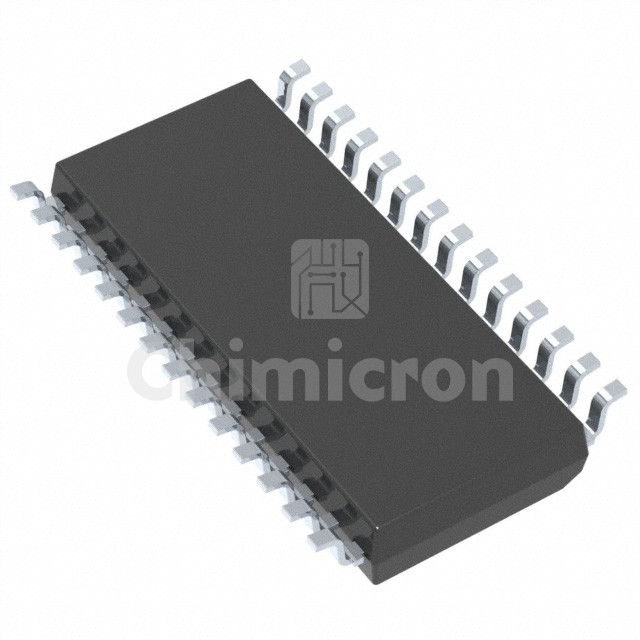

E-L6204D
Manufacturer: STMicroelectronics
Description: IC BRIDGE DRIVER PAR 28SOIC
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:10000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the E-L6204D STMicroelectronics at chimicron.com. We have 10000 pieces of E-L6204D in stock available now. Submit an inquiry for E-L6204D or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Output ConfigurationHalf Bridge (4)
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologyBCDMOS
Rds On (Typ)1.2Ohm
Current - Output / Channel500mA
Current - Peak Output3A
Voltage - Supply2V ~ 7V
Voltage - Load12V ~ 48V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionOver Temperature
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SO
