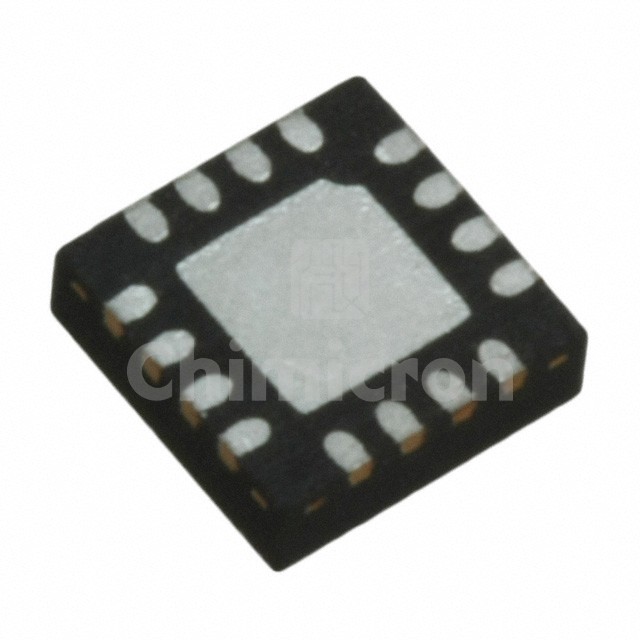

STG3699AUTR
Manufacturer: STMicroelectronics
Description: IC SWITCH QUAD SPDT 16QFN
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:239900
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STG3699AUTR STMicroelectronics at chimicron.com. We have 239900 pieces of STG3699AUTR in stock available now. Submit an inquiry for STG3699AUTR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits4
On-State Resistance (Max)450mOhm
Channel-to-Channel Matching (ΔRon)60mOhm
Voltage - Supply, Single (V+)1.65V ~ 4.3V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)55ns, 30ns
-3db Bandwidth50MHz
Charge Injection35pC
Channel Capacitance (CS(off), CD(off))5pF
Current - Leakage (IS(off)) (Max)20nA
Crosstalk-54dB @ 100kHz
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-UFQFN Exposed Pad
Supplier Device Package16-QFN (2.5x2.5)
