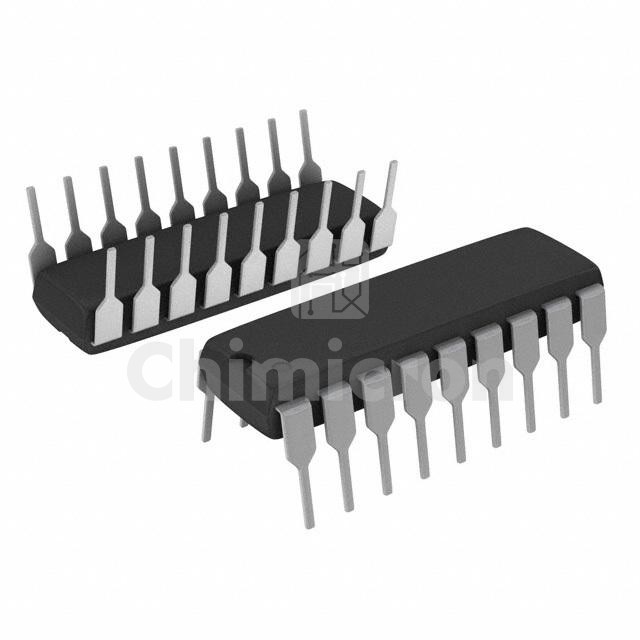

MAX389EPN
Manufacturer: Maxim Integrated
Description: IC MULTIPLEXER DUAL 4X1 18DIP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX389EPN Maxim Integrated at chimicron.com. We have 5000 pieces of MAX389EPN in stock available now. Submit an inquiry for MAX389EPN or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)3kOhm
Channel-to-Channel Matching (ΔRon)300Ohm
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±4.5V ~ 18V
Switch Time (Ton, Toff) (Max)1.5µs, 1µs
-3db Bandwidth-
Charge Injection55pC
Channel Capacitance (CS(off), CD(off))5pF, 25pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case18-DIP (0.300", 7.62mm)
Supplier Device Package18-PDIP
