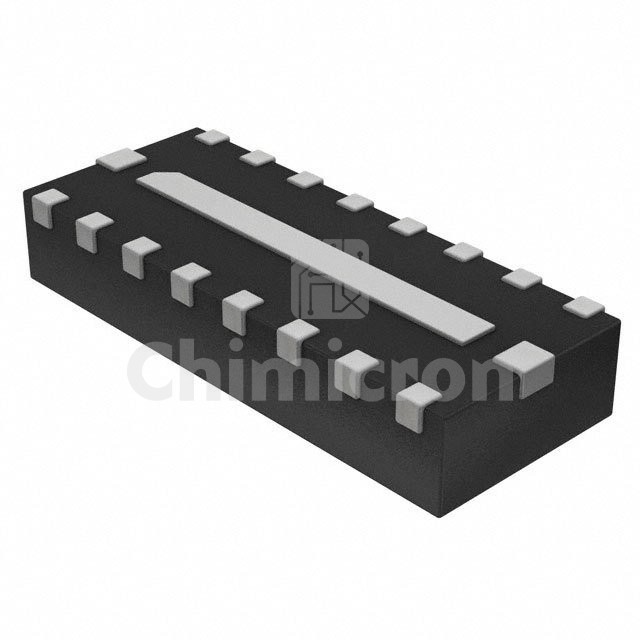

CM1406-08DE
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: FILTER RC(PI) 200 OHM/15PF SMD
Category : Filters
Family: EMI/RFI Filters (LC, RC Networks)
Series: -
In Stock:600000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CM1406-08DE Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 600000 pieces of CM1406-08DE in stock available now. Submit an inquiry for CM1406-08DE or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusObsolete
TypeLow Pass
Filter Order2nd
TechnologyRC (Pi)
Number of Channels8
Center / Cutoff Frequency105MHz (Cutoff)
Attenuation Value30dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms)200
Current-
ValuesR = 200Ohms, C = 15pF
ESD ProtectionYes
Operating Temperature-40°C ~ 85°C
ApplicationsData Lines for Mobile Devices
Voltage - Rated-
Mounting TypeSurface Mount
Package / Case16-WFDFN Exposed Pad
Size / Dimension0.157" L x 0.063" W (4.00mm x 1.60mm)
Height0.031" (0.79mm)
